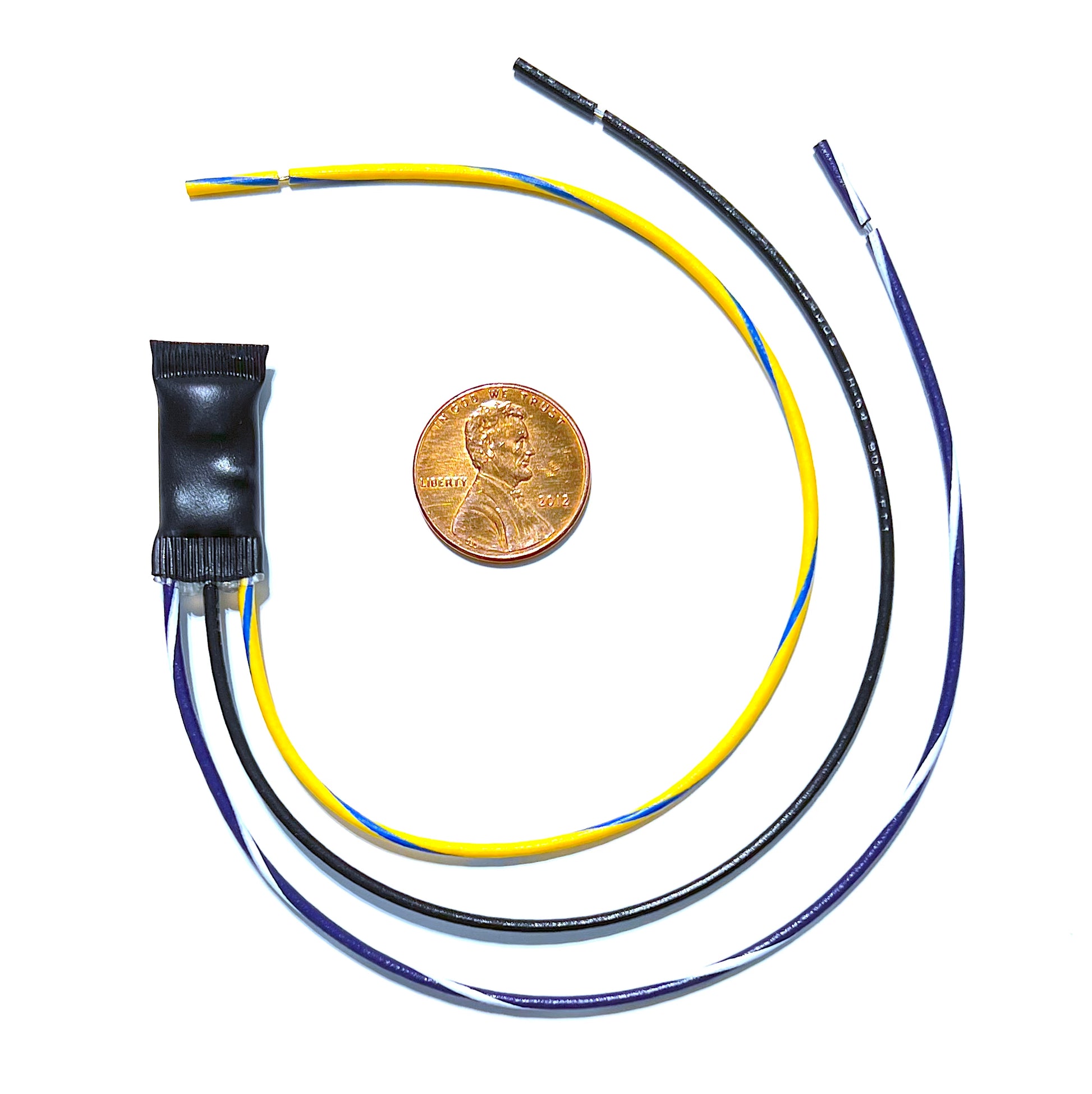

MicroBypass for Alpine Radios (3-Wire)

If you do not see your model listed here, check the Alpine 4-wire listing here, or feel free to contact us to verify compatibility before purchase.

Compatible with all Alpine aftermarket radios with ONLY a yellow/blue parking brake wire (no yellow/black foot-brake wire).

If you are using an aftermarket amplifier, an Alpine Power Pack, or sharing the blue/white remote wire with another accessory, diode-isolation may be required. See the the diode product listing for more info.

GUARANTEED TO WORK with ALL LISTED Alpine 3-wire models including:

iLX-007
iLX-107
iLX-207
iLX-407
iLX-507
iLX-F259
iLX-F309 (Halo9)
iLX-F409
iLX-F411 (Halo11)
iLX-F509
iLX-F511 (Halo11)
iLX-W650
iLX-W670
iLX-W770
INE-W957HD
INE-W960
INE-W970HD*
INE-W987HD
i209-WRA**
i509-WRA-JK**
i509-WRA-JL**
i407-WRA-JK**
i407-WRA-JL**
X108U
X308U
X409-WRA-JK**
X409-WRA-JL**

*The INE-W970HD Alpine radio is the only radio in the Alpine lineup that has an extended turn on time. Due to this initial startup offset, the radio requires being power cycled for it to control the MicroBypass® properly. Instead of cycling the ignition twice, you can simply source off the radio (press and hold the middle button, labeled with the squares on it, to source off the radio), then press the same button to turn it back on (and you will see the MicroBypass® is then active and unlocking the normally restricted features). This will allow the MicroBypass® to cycle properly once the radio restarts (without the long startup).

** The MicroBypass® also works on the Alpine restyle radios.  All of the connections for the MicroBypass® should be made at the Alpine radio's main power plug (at the back of the radio). To work properly, the parking brake wire coming from the Maestro module must be cut free, capped off, and not connected to anything. This way, the MicroBypass® yellow/blue wire will be the only wire connected to the yellow/blue wire coming from the Alpine radio wire harness. Use our Tech Support link if you need technical help.
